What is a decision tree?

A decision tree is a structured “if-this-then-that” map that compares two strategies (in this case, screen donors vs don’t screen) by averaging what would happen across many similar donors/recipients, weighting each possible outcome by its probability, and then adding up the costs and QALYs along the way.

Source code

The base case analysis shown on this page is implemented in:

This R script file is itself reliant on the following helper files:

Conceptual decision tree

First, we sketch out a decision tree that reflects our conceptual understanding of how costs and QALYs are generated by the two strategies. Note: Click to enlarge the diagram below:

At the far left, we have a decision node (square) splitting into the two strategies:

  • Screening (e.g., CrAg or other donor testing strategy)
  • No screening (standard approach)

After you pick a strategy, you hit chance nodes (circles). Each branch represents an outcome that can happen, like:

  • Donor truly has cryptococcal infection (rare)
  • Test is positive or negative (if screening)
  • Transmission occurs vs does not occur
  • Recipient develops disease vs not
  • Treatment works vs fails, etc.

At the end of each pathway (a “leaf” of the tree), we assign values to terminal nodes:

  • Cost: testing costs, prophylaxis, hospitalization, antifungals, ICU care, etc.
  • QALYs: quality-adjusted survival for the recipient under that outcome

We assume that no transplant and the continuation of dialysis is the reference, such that ΔCost and ΔQALY are defined to be 0 and all other costs and QALYs are relative to this reference.

Model parameters

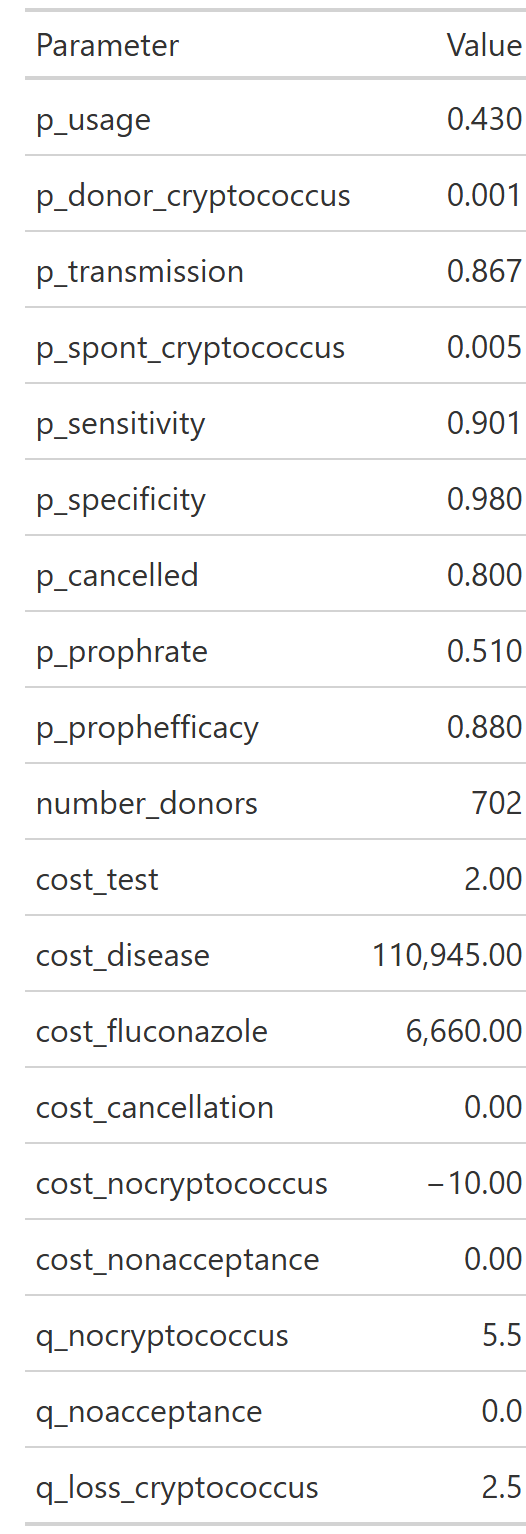

For the base case, we assign values to the parameters of the model as below:

Decision tree with parameters

The decision tree model, populated with the parameters above, leads to the following base case decision tree: CrAg decision tree

Path table

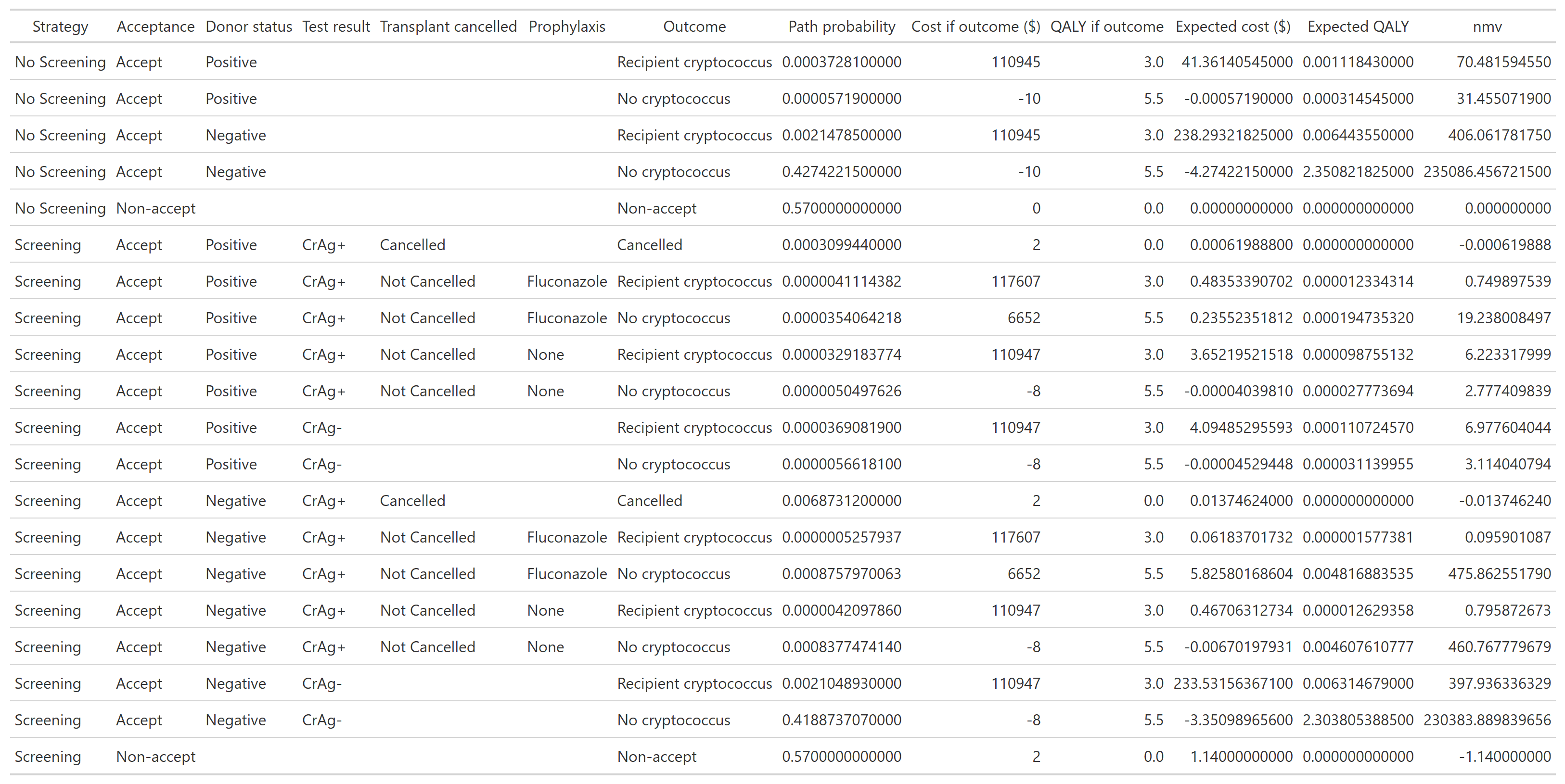

The decision tree above yields the following path table:

CrAg tree table

Summary table

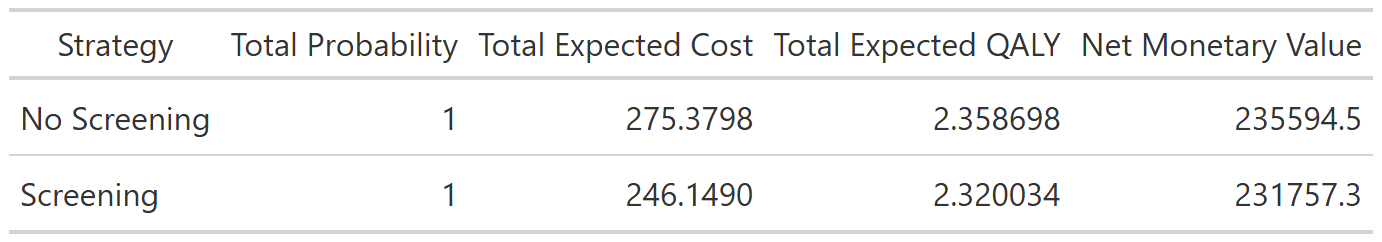

The analysis above yields the following final summary table: Summary table

Source code

Click below to open up the source code from R/create_diagram_QC.R that is used to perform this analysis.

Click to show/hide R Code
#Creates the tree diagram manually in R using grviz language

#First, we source the helper functions for the analysis
source("R/functions.R")

#Run the tree diagram
g_QC<-create_tree_diagram_QC()

#Print plot
g_QC$plot

#Save the tree diagram as svg
svg_QC <- export_svg(g_QC$plot)
writeLines(svg_QC, "figures/crag_tree_QC.svg")

#Annotate figure
svg_doc <- read_xml(svg_QC)
add_svg_annotation(
  svg_doc,
  c("Screening vs no screening:",
    glue("• ΔC = {scales::number(g_QC$cost_difference, accuracy = 0.01)}"),
    glue("• ΔQ = {formatC(g_QC$qaly_difference, format = 'f', digits = 4)}")  )
)
write_xml(svg_doc, "figures/crag_tree_QC_annotated.svg")

#Now, we look at the path table
result_tibble_QC<-g_QC$path_table

#Let's look at the tibble as a gt table
crag_table_QC<-result_tibble_QC%>%gt()%>%
  cols_label(
    strategy           = "Strategy",
    acceptance         = "Acceptance",
    donor_dz_status    = "Donor status",
    donor_test_result  = "Test result",
    cancellation       = "Transplant cancelled",
    proph              = "Prophylaxis",
    outcome            = "Outcome",
    probability        = "Path probability",
    cost_total         = "Cost if outcome ($)",
    cost_expected      = "Expected cost ($)",
    qaly_total         = "QALY if outcome",
    qaly_expected      = "Expected QALY"
  )%>%
  tab_style(
    style = cell_text(align = "center"),
    locations = cells_column_labels(everything())
  )%>%
  fmt_missing(everything(), missing_text = "")

#Print the table
crag_table_QC

#Save table
crag_table_QC%>%
  gtsave("figures/output_table_QC.png",
         vwidth = 2000,   # try 1600–2400
         vheight = 1200,
         expand = 10)
crag_table_QC%>%
  gtsave("tables/output_table_QC.docx")

#Let's create a table from the parameters
parameter_table_QC<-g_QC$parameter_tibble%>%
  gt()%>%
  cols_label(
    parameter = "Parameter",
    value     = "Value"
  )%>%
  fmt_number(
    columns = value,
    rows = parameter %in% c("number_donors"),
    decimals = 0
  )%>%
  fmt_number(
    columns = value,
    rows = parameter %in% c("cost_test", "cost_disease", "cost_fluconazole", "cost_cancellation",
                            "cost_cryptococcus", "cost_nonacceptance", "cost_nocryptococcus"),
    decimals = 2
  )%>%
  fmt_number(
    columns = value,
    rows = parameter %in% c("q_nocryptococcus", "q_noacceptance", "q_loss_cryptococcus"),
    decimals = 1
  )

parameter_table_QC
parameter_table_QC%>%
  gtsave("figures/parameter_table_QC.png")
parameter_table_QC%>%
  gtsave("tables/parameter_table_QC.docx")

#Let's also look at the summary statistics for this table
summary_tibble_QC<-result_tibble_QC%>%
  group_by(strategy)%>%
  summarize(total_probability=sum(probability), total_expected_cost=sum(cost_expected),total_expected_qaly=sum(qaly_expected))

summary_gt_QC<-summary_tibble_QC%>%
  gt()%>%
  cols_label(
    strategy = "Strategy",
    total_probability = "Total Probability",
    total_expected_cost = "Total Expected Cost",
    total_expected_qaly = "Total Expected QALY"
  )%>%
  tab_style(
    style = cell_text(align = "center"),
    locations = cells_column_labels(everything())
  )

summary_gt_QC
summary_gt_QC%>%
  gtsave("figures/summary_table_QC.png")
summary_gt_QC%>%
  gtsave("tables/summary_table_QC.docx")

Of note, the analysis assumes the existence of objects created in the following files:

Click to show/hide R Code
#This code performs setup and other tasks for the CEA analysis

library(DiagrammeR)
library(DiagrammeRsvg)
library(glue)
library(tibble)
library(gt)
library(tidyverse)
library(ggtext)
library(xml2)

#Save simulation parameters

#Expected values
expected_value<-list()
expected_value$p_usage<-0.43
expected_value$p_donor_cryptococcus<-0.001
expected_value$p_transmission<-0.867
expected_value$p_spont_cryptococcus<-0.005
expected_value$p_sensitivity<-0.901
expected_value$p_specificity<-0.98
expected_value$p_cancelled<-0.8
expected_value$p_prophrate<-0.51
expected_value$p_prophefficacy<-0.88
expected_value$number_donors<-702
expected_value$cost_test<-2
expected_value$cost_disease<-110945
expected_value$cost_fluconazole<-6660
expected_value$cost_cancellation<-0
expected_value$cost_nocryptococcus<--10
expected_value$cost_nonacceptance<-0
expected_value$q_nocryptococcus<-5.5
expected_value$q_noacceptance<-0
expected_value$q_loss_cryptococcus<-2.5

#Shape parameters
shape_parameter<-list()
shape_parameter$p_usage<-10
shape_parameter$p_donor_cryptococcus<-10
shape_parameter$p_transmission<-10
shape_parameter$p_spont_cryptococcus<-10
shape_parameter$p_sensitivity<-10
shape_parameter$p_specificity<-10
shape_parameter$p_cancelled<-10
shape_parameter$p_prophrate<-10
shape_parameter$p_prophefficacy<-10
shape_parameter$cost_test<-4
shape_parameter$cost_disease<-4
shape_parameter$cost_fluconazole<-4
shape_parameter$cost_cancellation<-NA
shape_parameter$cost_nocryptococcus<-NA
shape_parameter$cost_nonacceptance<-NA
shape_parameter$q_nocryptococcus<-4
shape_parameter$q_noacceptance<-NA
shape_parameter$q_loss_cryptococcus<-4


# willingness-to-pay threshold
wtp <- 100000

#Set seed for reproducibility
set.seed(42)

#Define number of simulations in PSA
nsim<-10000
Click to show/hide R Code
#Functions for CEA

#Function for the calculations needed for PSA.
calculate_cost_QALY_QC<-function(p_usage=expected_value$p_usage,
                                 p_donor_cryptococcus=expected_value$p_donor_cryptococcus,
                                 p_transmission=expected_value$p_transmission,
                                 p_spont_cryptococcus=expected_value$p_spont_cryptococcus,
                                 p_sensitivity=expected_value$p_sensitivity,
                                 p_specificity=expected_value$p_specificity,
                                 p_cancelled=expected_value$p_cancelled,
                                 p_prophrate=expected_value$p_prophrate,
                                 p_prophefficacy=expected_value$p_prophefficacy,
                                 number_donors=expected_value$number_donors,
                                 cost_test=expected_value$cost_test,
                                 cost_disease=expected_value$cost_disease,
                                 cost_fluconazole=expected_value$cost_fluconazole,
                                 cost_cancellation=expected_value$cost_cancellation,
                                 cost_nocryptococcus=expected_value$cost_nocryptococcus,
                                 cost_nonacceptance=expected_value$cost_nonacceptance,
                                 q_nocryptococcus=expected_value$q_nocryptococcus,
                                 q_noacceptance=expected_value$q_noacceptance,
                                 q_loss_cryptococcus=expected_value$q_loss_cryptococcus
)
{

  #Define parameters which are derived from the input parameters
  p_nonusage<-1-p_usage
  p_donor_nocryptococcus<-1-p_donor_cryptococcus
  p_nontransmission<-1-p_transmission
  p_nospont_cryptococcus<-1-p_spont_cryptococcus
  p_falsenegative<-1-p_sensitivity
  p_falsepositive<-1-p_specificity
  p_nocancelled<-1-p_cancelled
  p_noprophrate<-1-p_prophrate
  p_noprophefficacy<-1-p_prophefficacy
  p_breakthrough_donorpos<-(1-p_prophefficacy)*p_transmission
  p_nobreakthrough_donorpos<-1-p_breakthrough_donorpos
  p_breakthrough_donorneg<-(1-p_prophefficacy)*p_spont_cryptococcus
  p_nobreakthrough_donorneg<-1-p_breakthrough_donorneg
  q_cryptococcus<-q_nocryptococcus-q_loss_cryptococcus

  #Define tibble of outcomes
  path_table<-tribble(
    ~strategy, ~acceptance, ~donor_dz_status, ~donor_test_result, ~cancellation, ~proph, ~outcome, ~probability, ~cost_total, ~qaly_total,
    "No Screening","Accept","Positive",NA,NA,NA,"Recipient cryptococcus",p_usage*p_donor_cryptococcus*p_transmission,cost_disease,q_cryptococcus,
    "No Screening","Accept","Positive",NA,NA,NA,"No cryptococcus",p_usage*p_donor_cryptococcus*p_nontransmission,cost_nocryptococcus,q_nocryptococcus,
    "No Screening","Accept","Negative",NA,NA,NA,"Recipient cryptococcus",p_usage*p_donor_nocryptococcus*p_spont_cryptococcus,cost_disease,q_cryptococcus,
    "No Screening","Accept","Negative",NA,NA,NA,"No cryptococcus",p_usage*p_donor_nocryptococcus*p_nospont_cryptococcus,cost_nocryptococcus,q_nocryptococcus,
    "No Screening","Non-accept",NA,NA,NA,NA,"Non-accept",p_nonusage,cost_nonacceptance,q_noacceptance,


    "Screening","Accept","Positive","CrAg+","Cancelled",NA,"Cancelled",p_usage*p_donor_cryptococcus*p_sensitivity*p_cancelled,cost_cancellation+cost_test,q_noacceptance,
    "Screening","Accept","Positive","CrAg+","Not Cancelled","Fluconazole","Recipient cryptococcus",p_usage*p_donor_cryptococcus*p_sensitivity*p_nocancelled*p_prophrate*p_breakthrough_donorpos,cost_test+cost_disease+cost_fluconazole,q_cryptococcus,
    "Screening","Accept","Positive","CrAg+","Not Cancelled","Fluconazole","No cryptococcus",p_usage*p_donor_cryptococcus*p_sensitivity*p_nocancelled*p_prophrate*p_nobreakthrough_donorpos,cost_test+cost_nocryptococcus+cost_fluconazole,q_nocryptococcus,
    "Screening","Accept","Positive","CrAg+","Not Cancelled","None","Recipient cryptococcus",p_usage*p_donor_cryptococcus*p_sensitivity*p_nocancelled*p_noprophrate*p_transmission,cost_test+cost_disease,q_cryptococcus,
    "Screening","Accept","Positive","CrAg+","Not Cancelled","None","No cryptococcus",p_usage*p_donor_cryptococcus*p_sensitivity*p_nocancelled*p_noprophrate*p_nontransmission,cost_test+cost_nocryptococcus,q_nocryptococcus,
    "Screening","Accept","Positive","CrAg-",NA,NA,"Recipient cryptococcus",p_usage*p_donor_cryptococcus*p_falsenegative*p_transmission,cost_test+cost_disease,q_cryptococcus,
    "Screening","Accept","Positive","CrAg-",NA,NA,"No cryptococcus",p_usage*p_donor_cryptococcus*p_falsenegative*p_nontransmission,cost_test+cost_nocryptococcus,q_nocryptococcus,

    "Screening","Accept","Negative","CrAg+","Cancelled",NA,"Cancelled",p_usage*p_donor_nocryptococcus*p_falsepositive*p_cancelled,cost_cancellation+cost_test,q_noacceptance,
    "Screening","Accept","Negative","CrAg+","Not Cancelled","Fluconazole","Recipient cryptococcus",p_usage*p_donor_nocryptococcus*p_falsepositive*p_nocancelled*p_prophrate*p_breakthrough_donorneg,cost_test+cost_disease+cost_fluconazole,q_cryptococcus,
    "Screening","Accept","Negative","CrAg+","Not Cancelled","Fluconazole","No cryptococcus",p_usage*p_donor_nocryptococcus*p_falsepositive*p_nocancelled*p_prophrate*p_nobreakthrough_donorneg,cost_test+cost_nocryptococcus+cost_fluconazole,q_nocryptococcus,
    "Screening","Accept","Negative","CrAg+","Not Cancelled","None","Recipient cryptococcus",p_usage*p_donor_nocryptococcus*p_falsepositive*p_nocancelled*p_noprophrate*p_spont_cryptococcus,cost_test+cost_disease,q_cryptococcus,
    "Screening","Accept","Negative","CrAg+","Not Cancelled","None","No cryptococcus",p_usage*p_donor_nocryptococcus*p_falsepositive*p_nocancelled*p_noprophrate*p_nospont_cryptococcus,cost_test+cost_nocryptococcus,q_nocryptococcus,
    "Screening","Accept","Negative","CrAg-",NA,NA,"Recipient cryptococcus",p_usage*p_donor_nocryptococcus*p_specificity*p_spont_cryptococcus,cost_test+cost_disease,q_cryptococcus,
    "Screening","Accept","Negative","CrAg-",NA,NA,"No cryptococcus",p_usage*p_donor_nocryptococcus*p_specificity*p_nospont_cryptococcus,cost_test+cost_nocryptococcus,q_nocryptococcus,
    "Screening","Non-accept",NA,NA,NA,NA,"Non-accept",p_nonusage,cost_nonacceptance+cost_test,q_noacceptance,

  )%>%
    mutate(cost_expected=probability*cost_total,
           qaly_expected=probability*qaly_total)

  #Summary object is created via summarize and then converted into long format
  summary_tibble<-path_table%>%
    group_by(strategy)%>%
    summarize(total_expected_cost=sum(cost_expected), total_expected_qaly=sum(qaly_expected))%>%
    mutate(
      strategy = recode(
        strategy,
        "No Screening" = "ns",
        "Screening"    = "s"
      )
    ) %>%
    tidyr::pivot_wider(
      names_from  = strategy,
      values_from = c(
        total_expected_cost,
        total_expected_qaly
      ),
      names_sep = "_"
    )

  #Final return
  return(summary_tibble)
}


#Function that creates tree diagram.  It returns the diagram created via the GraphViz language, a table of input parameters
#and the output results
create_tree_diagram_QC<-function(p_usage=expected_value$p_usage,
                                 p_donor_cryptococcus=expected_value$p_donor_cryptococcus,
                                 p_transmission=expected_value$p_transmission,
                                 p_spont_cryptococcus=expected_value$p_spont_cryptococcus,
                                 p_sensitivity=expected_value$p_sensitivity,
                                 p_specificity=expected_value$p_specificity,
                                 p_cancelled=expected_value$p_cancelled,
                                 p_prophrate=expected_value$p_prophrate,
                                 p_prophefficacy=expected_value$p_prophefficacy,
                                 number_donors=expected_value$number_donors,
                                 cost_test=expected_value$cost_test,
                                 cost_disease=expected_value$cost_disease,
                                 cost_fluconazole=expected_value$cost_fluconazole,
                                 cost_cancellation=expected_value$cost_cancellation,
                                 cost_nocryptococcus=expected_value$cost_nocryptococcus,
                                 cost_nonacceptance=expected_value$cost_nonacceptance,
                                 q_nocryptococcus=expected_value$q_nocryptococcus,
                                 q_noacceptance=expected_value$q_noacceptance,
                                 q_loss_cryptococcus=expected_value$q_loss_cryptococcus,
                                 circle_diameter=1.4,
                                 box_width=1.7,
                                 box_height=1,
                                 diamond_width=3,
                                 diamond_height=1.5

)
{

  #Define parameters that are derived from parameters passed to the function
  p_nonusage<-1-p_usage
  p_donor_nocryptococcus<-1-p_donor_cryptococcus
  p_nontransmission<-1-p_transmission
  p_nospont_cryptococcus<-1-p_spont_cryptococcus
  p_falsenegative<-1-p_sensitivity
  p_falsepositive<-1-p_specificity
  p_nocancelled<-1-p_cancelled
  p_noprophrate<-1-p_prophrate
  p_noprophefficacy<-1-p_prophefficacy
  p_breakthrough_donorpos<-(1-p_prophefficacy)*p_transmission
  p_nobreakthrough_donorpos<-1-p_breakthrough_donorpos
  p_breakthrough_donorneg<-(1-p_prophefficacy)*p_spont_cryptococcus
  p_nobreakthrough_donorneg<-1-p_breakthrough_donorneg
  q_cryptococcus<-q_nocryptococcus-q_loss_cryptococcus


  #Define return list
  return_list<-list()

  #Define tibble of outcomes
  return_list$path_table<-tribble(
    ~strategy, ~acceptance, ~donor_dz_status, ~donor_test_result, ~cancellation, ~proph, ~outcome, ~probability, ~cost_total, ~qaly_total,
    "No Screening","Accept","Positive",NA,NA,NA,"Recipient cryptococcus",p_usage*p_donor_cryptococcus*p_transmission,cost_disease,q_cryptococcus,
    "No Screening","Accept","Positive",NA,NA,NA,"No cryptococcus",p_usage*p_donor_cryptococcus*p_nontransmission,cost_nocryptococcus,q_nocryptococcus,
    "No Screening","Accept","Negative",NA,NA,NA,"Recipient cryptococcus",p_usage*p_donor_nocryptococcus*p_spont_cryptococcus,cost_disease,q_cryptococcus,
    "No Screening","Accept","Negative",NA,NA,NA,"No cryptococcus",p_usage*p_donor_nocryptococcus*p_nospont_cryptococcus,cost_nocryptococcus,q_nocryptococcus,
    "No Screening","Non-accept",NA,NA,NA,NA,"Non-accept",p_nonusage,cost_nonacceptance,q_noacceptance,


    "Screening","Accept","Positive","CrAg+","Cancelled",NA,"Cancelled",p_usage*p_donor_cryptococcus*p_sensitivity*p_cancelled,cost_cancellation+cost_test,q_noacceptance,
    "Screening","Accept","Positive","CrAg+","Not Cancelled","Fluconazole","Recipient cryptococcus",p_usage*p_donor_cryptococcus*p_sensitivity*p_nocancelled*p_prophrate*p_breakthrough_donorpos,cost_test+cost_disease+cost_fluconazole,q_cryptococcus,
    "Screening","Accept","Positive","CrAg+","Not Cancelled","Fluconazole","No cryptococcus",p_usage*p_donor_cryptococcus*p_sensitivity*p_nocancelled*p_prophrate*p_nobreakthrough_donorpos,cost_test+cost_nocryptococcus+cost_fluconazole,q_nocryptococcus,
    "Screening","Accept","Positive","CrAg+","Not Cancelled","None","Recipient cryptococcus",p_usage*p_donor_cryptococcus*p_sensitivity*p_nocancelled*p_noprophrate*p_transmission,cost_test+cost_disease,q_cryptococcus,
    "Screening","Accept","Positive","CrAg+","Not Cancelled","None","No cryptococcus",p_usage*p_donor_cryptococcus*p_sensitivity*p_nocancelled*p_noprophrate*p_nontransmission,cost_test+cost_nocryptococcus,q_nocryptococcus,
    "Screening","Accept","Positive","CrAg-",NA,NA,"Recipient cryptococcus",p_usage*p_donor_cryptococcus*p_falsenegative*p_transmission,cost_test+cost_disease,q_cryptococcus,
    "Screening","Accept","Positive","CrAg-",NA,NA,"No cryptococcus",p_usage*p_donor_cryptococcus*p_falsenegative*p_nontransmission,cost_test+cost_nocryptococcus,q_nocryptococcus,

    "Screening","Accept","Negative","CrAg+","Cancelled",NA,"Cancelled",p_usage*p_donor_nocryptococcus*p_falsepositive*p_cancelled,cost_cancellation+cost_test,q_noacceptance,
    "Screening","Accept","Negative","CrAg+","Not Cancelled","Fluconazole","Recipient cryptococcus",p_usage*p_donor_nocryptococcus*p_falsepositive*p_nocancelled*p_prophrate*p_breakthrough_donorneg,cost_test+cost_disease+cost_fluconazole,q_cryptococcus,
    "Screening","Accept","Negative","CrAg+","Not Cancelled","Fluconazole","No cryptococcus",p_usage*p_donor_nocryptococcus*p_falsepositive*p_nocancelled*p_prophrate*p_nobreakthrough_donorneg,cost_test+cost_nocryptococcus+cost_fluconazole,q_nocryptococcus,
    "Screening","Accept","Negative","CrAg+","Not Cancelled","None","Recipient cryptococcus",p_usage*p_donor_nocryptococcus*p_falsepositive*p_nocancelled*p_noprophrate*p_spont_cryptococcus,cost_test+cost_disease,q_cryptococcus,
    "Screening","Accept","Negative","CrAg+","Not Cancelled","None","No cryptococcus",p_usage*p_donor_nocryptococcus*p_falsepositive*p_nocancelled*p_noprophrate*p_nospont_cryptococcus,cost_test+cost_nocryptococcus,q_nocryptococcus,
    "Screening","Accept","Negative","CrAg-",NA,NA,"Recipient cryptococcus",p_usage*p_donor_nocryptococcus*p_specificity*p_spont_cryptococcus,cost_test+cost_disease,q_cryptococcus,
    "Screening","Accept","Negative","CrAg-",NA,NA,"No cryptococcus",p_usage*p_donor_nocryptococcus*p_specificity*p_nospont_cryptococcus,cost_test+cost_nocryptococcus,q_nocryptococcus,
    "Screening","Non-accept",NA,NA,NA,NA,"Non-accept",p_nonusage,cost_nonacceptance+cost_test,q_noacceptance,

  )%>%
    mutate(cost_expected=probability*cost_total,
           qaly_expected=probability*qaly_total)

  #Summary object ofr
  return_list$summary_tibble<-return_list$path_table%>%
    group_by(strategy)%>%
    summarize(total_probability=sum(probability), total_expected_cost=sum(cost_expected), total_expected_qaly=sum(qaly_expected))

  #Create parameter table to return
  return_list$parameter_tibble<-tribble(
    ~parameter, ~value,
    "p_usage", p_usage,
    "p_donor_cryptococcus",p_donor_cryptococcus,
    "p_transmission",p_transmission,
    "p_spont_cryptococcus",p_spont_cryptococcus,
    "p_sensitivity",p_sensitivity,
    "p_specificity",p_specificity,
    "p_cancelled",p_cancelled,
    "p_prophrate",p_prophrate,
    "p_prophefficacy",p_prophefficacy,
    "number_donors",number_donors,
    "cost_test",cost_test,
    "cost_disease",cost_disease,
    "cost_fluconazole",cost_fluconazole,
    "cost_cancellation",cost_cancellation,
    "cost_nocryptococcus",cost_nocryptococcus,
    "cost_nonacceptance",cost_nonacceptance,
    "q_nocryptococcus",q_nocryptococcus,
    "q_noacceptance",q_noacceptance,
    "q_loss_cryptococcus",q_loss_cryptococcus)

  return_list$cost_difference<-return_list$summary_tibble[[2,3]]-return_list$summary_tibble[[1,3]]
  return_list$qaly_difference<-return_list$summary_tibble[[2,4]]-return_list$summary_tibble[[1,4]]

  #Text to define tree diagram for grviz
  grviz_text<-glue("
digraph crag {{

  graph [rankdir=LR]
  node  [fontname=Helvetica, fontsize=14.5]
  edge  [fontname=Helvetica, fontsize=15]

  # ---- Nodes ----
  start [shape=box, label='Potential\ndonors\nN = {number_donors}', fixedsize=TRUE, width={box_width}, height={box_height}]

  no_screen [shape=box, fillcolor=palegreen, style=filled,
             label='No CrAg\nscreening\nΔC = $0', fixedsize=TRUE, width={box_width}, height={box_height}]

  screen [shape=box, fillcolor=palegreen, style=filled,
          label='CrAg\nscreening\nΔC = ${cost_test}', fixedsize=TRUE, width={box_width}, height={box_height}]

  used_ns [shape=circle, fillcolor=lightyellow, style=filled,
           label='Organs\nused', fixedsize=TRUE, width={circle_diameter}, height={circle_diameter}]

  notused_ns [shape=diamond, fillcolor=lightblue, style=filled,
           label='Organs\nnot used\nΔC = ${cost_nonacceptance}\nΔQ = {q_noacceptance}', fixedsize=TRUE, width={diamond_width}, height={diamond_height}]

  used_s [shape=circle, fillcolor=lightyellow, style=filled,
           label='Organs\nused', fixedsize=TRUE, width={circle_diameter}, height={circle_diameter}]

  notused_s [shape=diamond, fillcolor=lightblue, style=filled,
           label='Organs\nnot used\nΔC = ${cost_nonacceptance}\nΔQ = {q_noacceptance}', fixedsize=TRUE, width={diamond_width}, height={diamond_height}]

  donor_pos_ns [shape=circle, fillcolor=lightyellow, style=filled,
                label='Donor\nwith\ncryptococcus', fixedsize=TRUE, width={circle_diameter}, height={circle_diameter}]

  donor_neg_ns [shape=circle, fillcolor=lightyellow, style=filled,
                label='Donor\nwithout\ncryptococcus', fixedsize=TRUE, width={circle_diameter}, height={circle_diameter}]

  donor_pos_s [shape=circle, fillcolor=lightyellow, style=filled,
                label='Donor\nwith\ncryptococcus', fixedsize=TRUE, width={circle_diameter}, height={circle_diameter}]

  donor_neg_s [shape=circle, fillcolor=lightyellow, style=filled,
                label='Donor\nwithout\ncryptococcus', fixedsize=TRUE, width={circle_diameter}, height={circle_diameter}]

  inf_yes_agpos_ns [shape=diamond, fillcolor=mistyrose, style=filled,
           label='Recipient\ncryptococcosis\nΔC = ${cost_disease}\nΔQ = {q_cryptococcus}', fixedsize=TRUE, width={diamond_width}, height={diamond_height}]

  inf_yes_agneg_ns [shape=diamond, fillcolor=mistyrose, style=filled,
           label='Recipient\ncryptococcosis\nΔC = ${cost_disease}\nΔQ = {q_cryptococcus}', fixedsize=TRUE, width={diamond_width}, height={diamond_height}]

  inf_no_agpos_ns [shape=diamond, label='No\ncryptococcus\nΔC = ${cost_nocryptococcus}\nΔQ = {q_nocryptococcus}', fixedsize=TRUE, width={diamond_width}, height={diamond_height}]

  inf_no_agneg_ns [shape=diamond, label='No\ncryptococcus\nΔC = ${cost_nocryptococcus}\nΔQ = {q_nocryptococcus}', fixedsize=TRUE, width={diamond_width}, height={diamond_height}]

  ag_truepos_s [shape=circle, fillcolor=lightyellow, style=filled,
                label='Donor\nCrAg+', fixedsize=TRUE, width={circle_diameter}, height={circle_diameter}]

  ag_falseneg_s [shape=circle, fillcolor=lightyellow, style=filled,
                label='Donor\nCrAg-', fixedsize=TRUE, width={circle_diameter}, height={circle_diameter}]

  ag_falsepos_s [shape=circle, fillcolor=lightyellow, style=filled,
                label='Donor\nCrAg+', fixedsize=TRUE, width={circle_diameter}, height={circle_diameter}]

  ag_trueneg_s [shape=circle, fillcolor=lightyellow, style=filled,
                label='Donor\nCrAg-', fixedsize=TRUE, width={circle_diameter}, height={circle_diameter}]

  transplant_cancelled_ag_truepos_s [shape=diamond, fillcolor=lightblue, style=filled,
                label='Transplant\ncancelled\nΔC = ${cost_cancellation}\nΔQ = {q_noacceptance}', fixedsize=TRUE, width={diamond_width}, height={diamond_height}]

  transplant_notcancelled_ag_truepos_s [shape=circle, fillcolor=lightyellow, style=filled,
                label='Transplant\nnot\ncancelled', fixedsize=TRUE, width={circle_diameter}, height={circle_diameter}]

  transplant_cancelled_ag_falsepos_s [shape=diamond, fillcolor=lightblue, style=filled,
                label='Transplant\ncancelled\nΔC = ${cost_cancellation}\nΔQ = {q_noacceptance}', fixedsize=TRUE, width={diamond_width}, height={diamond_height}]

  transplant_notcancelled_ag_falsepos_s [shape=circle, fillcolor=lightyellow, style=filled,
                label='Transplant\nnot\ncancelled', fixedsize=TRUE, width={circle_diameter}, height={circle_diameter}]

  proph_yes_transplant_notcancelled_ag_truepos_s [shape=circle, fillcolor=lightyellow, style=filled,
                label='Fluconazole\nprophylaxis\nΔC = ${cost_fluconazole}', fixedsize=TRUE, width={circle_diameter}, height={circle_diameter}]

  proph_no_transplant_notcancelled_ag_truepos_s [shape=circle, fillcolor=lightyellow, style=filled,
                label='No\nprophylaxis', fixedsize=TRUE, width={circle_diameter}, height={circle_diameter}]

  proph_yes_transplant_notcancelled_ag_falsepos_s [shape=circle, fillcolor=lightyellow, style=filled,
                label='Fluconazole\nprophylaxis\nΔC = ${cost_fluconazole}', fixedsize=TRUE, width={circle_diameter}, height={circle_diameter}]

  proph_no_transplant_notcancelled_ag_falsepos_s [shape=circle, fillcolor=lightyellow, style=filled,
                label='No\nprophylaxis', fixedsize=TRUE, width={circle_diameter}, height={circle_diameter}]

  inf_y_proph_yes_transplant_notcancelled_ag_truepos_s [shape=diamond, fillcolor=mistyrose, style=filled,
           label='Recipient\ncryptococcosis\nΔC = ${cost_disease}\nΔQ = {q_cryptococcus}', fixedsize=TRUE, width={diamond_width}, height={diamond_height}]

  inf_n_proph_yes_transplant_notcancelled_ag_truepos_s [shape=diamond, label='No\ncryptococcosis\nΔC = ${cost_nocryptococcus}\nΔQ = {q_nocryptococcus}',
           fixedsize=TRUE, width={diamond_width}, height={diamond_height}]

  inf_y_proph_no_transplant_notcancelled_ag_truepos_s [shape=diamond, fillcolor=mistyrose, style=filled,
           label='Recipient\ncryptococcosis\nΔC = ${cost_disease}\nΔQ = {q_cryptococcus}', fixedsize=TRUE, width={diamond_width}, height={diamond_height}]
  inf_n_proph_no_transplant_notcancelled_ag_truepos_s [shape=diamond, label='No\ncryptococcosis\nΔC = ${cost_nocryptococcus}\nΔQ = {q_nocryptococcus}',
           fixedsize=TRUE, width={diamond_width}, height={diamond_height}]


  inf_y_proph_yes_transplant_notcancelled_ag_falsepos_s [shape=diamond, fillcolor=mistyrose, style=filled,
           label='Recipient\ncryptococcosis\nΔC = ${cost_disease}\nΔQ = {q_cryptococcus}', fixedsize=TRUE, width={diamond_width}, height={diamond_height}]
  inf_n_proph_yes_transplant_notcancelled_ag_falsepos_s [shape=diamond, label='No\ncryptococcus\nΔC = ${cost_nocryptococcus}\nΔQ = {q_nocryptococcus}',
           fixedsize=TRUE, width={diamond_width}, height={diamond_height}]

  inf_y_proph_no_transplant_notcancelled_ag_falsepos_s [shape=diamond, fillcolor=mistyrose, style=filled,
           label='Recipient\ncryptococcosis\nΔC = ${cost_disease}\nΔQ = {q_cryptococcus}', fixedsize=TRUE, width={diamond_width}, height={diamond_height}]
  inf_n_proph_no_transplant_notcancelled_ag_falsepos_s [shape=diamond, label='No\ncryptococcus\nΔC = ${cost_nocryptococcus}\nΔQ = {q_nocryptococcus}',
           fixedsize=TRUE, width={diamond_width}, height={diamond_height}]


  inf_y_ag_falseneg_s [shape=diamond, fillcolor=mistyrose, style=filled,
           label='Recipient\ncryptococcosis\nΔC = ${cost_disease}\nΔQ = {q_cryptococcus}', fixedsize=TRUE, width={diamond_width}, height={diamond_height}]
  inf_n_ag_falseneg_s [shape=diamond, label='No\ncryptococcus\nΔC = ${cost_nocryptococcus}\nΔQ = {q_nocryptococcus}',
           fixedsize=TRUE, width={diamond_width}, height={diamond_height}]

  inf_y_ag_trueneg_s [shape=diamond, fillcolor=mistyrose, style=filled,
           label='Recipient\ncryptococcosis\nΔC = ${cost_disease}\nΔQ = {q_cryptococcus}', fixedsize=TRUE, width={diamond_width}, height={diamond_height}]
  inf_n_ag_trueneg_s [shape=diamond, label='No\ncryptococcus\nΔC = ${cost_nocryptococcus}\nΔQ = {q_nocryptococcus}',
           fixedsize=TRUE, width={diamond_width}, height={diamond_height}]

  # ---- Structure ----
  start -> no_screen
  start -> screen

  no_screen -> used_ns [label='p = {p_usage}']
  no_screen -> notused_ns [label='p = {p_nonusage}']

  used_ns -> donor_pos_ns [label='p = {p_donor_cryptococcus}']
  used_ns -> donor_neg_ns [label='p = {p_donor_nocryptococcus}']

  donor_pos_ns -> inf_yes_agpos_ns [label='p = {p_transmission}']
  donor_pos_ns -> inf_no_agpos_ns  [label='p = {p_nontransmission}']

  donor_neg_ns -> inf_no_agneg_ns  [label='p = {p_nospont_cryptococcus}']
  donor_neg_ns -> inf_yes_agneg_ns  [label='p = {p_spont_cryptococcus}']

  screen -> used_s [label='p = {p_usage}']
  screen -> notused_s [label='p = {p_nonusage}']

  used_s -> donor_pos_s [label='p = {p_donor_cryptococcus}']
  used_s -> donor_neg_s [label='p = {p_donor_nocryptococcus}']

  donor_pos_s -> ag_truepos_s [label='p = {p_sensitivity}']
  donor_pos_s -> ag_falseneg_s [label='p = {p_falsenegative}']

  ag_truepos_s -> transplant_cancelled_ag_truepos_s [label='p = {p_cancelled}']
  ag_truepos_s -> transplant_notcancelled_ag_truepos_s [label='p = {p_nocancelled}']

  transplant_notcancelled_ag_truepos_s-> proph_yes_transplant_notcancelled_ag_truepos_s [label='p = {p_prophrate}']
  transplant_notcancelled_ag_truepos_s-> proph_no_transplant_notcancelled_ag_truepos_s [label='p = {p_noprophrate}']

  donor_neg_s -> ag_trueneg_s [label='p = {p_specificity}']
  donor_neg_s -> ag_falsepos_s [label='p = {p_falsepositive}']

  ag_falsepos_s -> transplant_cancelled_ag_falsepos_s [label='p = {p_cancelled}']
  ag_falsepos_s -> transplant_notcancelled_ag_falsepos_s [label='p = {p_nocancelled}']

  transplant_notcancelled_ag_falsepos_s -> proph_yes_transplant_notcancelled_ag_falsepos_s [label='p = {p_prophrate}']
  transplant_notcancelled_ag_falsepos_s -> proph_no_transplant_notcancelled_ag_falsepos_s [label='p = {p_noprophrate}']

  proph_yes_transplant_notcancelled_ag_truepos_s-> inf_y_proph_yes_transplant_notcancelled_ag_truepos_s [label='p = {p_breakthrough_donorpos}']
  proph_yes_transplant_notcancelled_ag_truepos_s-> inf_n_proph_yes_transplant_notcancelled_ag_truepos_s [label='p = {p_nobreakthrough_donorpos}']

  proph_no_transplant_notcancelled_ag_truepos_s-> inf_y_proph_no_transplant_notcancelled_ag_truepos_s [label='p = {p_transmission}']
  proph_no_transplant_notcancelled_ag_truepos_s-> inf_n_proph_no_transplant_notcancelled_ag_truepos_s [label='p = {p_nontransmission}']

  ag_falseneg_s->inf_y_ag_falseneg_s [label='p = {p_transmission}']
  ag_falseneg_s->inf_n_ag_falseneg_s [label='p = {p_nontransmission}']

  ag_trueneg_s->inf_y_ag_trueneg_s [label='p = {p_spont_cryptococcus}']
  ag_trueneg_s->inf_n_ag_trueneg_s [label='p = {p_nospont_cryptococcus}']

  proph_yes_transplant_notcancelled_ag_falsepos_s-> inf_y_proph_yes_transplant_notcancelled_ag_falsepos_s [label='p = {p_breakthrough_donorneg}']
  proph_yes_transplant_notcancelled_ag_falsepos_s-> inf_n_proph_yes_transplant_notcancelled_ag_falsepos_s [label='p = {p_nobreakthrough_donorneg}']

  proph_no_transplant_notcancelled_ag_falsepos_s-> inf_y_proph_no_transplant_notcancelled_ag_falsepos_s [label='p = {p_spont_cryptococcus}']
  proph_no_transplant_notcancelled_ag_falsepos_s-> inf_n_proph_no_transplant_notcancelled_ag_falsepos_s [label='p = {p_nospont_cryptococcus}']


}}
")

  #Add grviz object to return_list
  return_list$plot<-grViz(grviz_text)



  #Final return
  return(return_list)
}


add_svg_annotation <- function(svg, lines,
                               x = 40, y = 1200,
                               fontsize = 50,
                               lineheight = 1.3) {

  text_node <- xml_add_child(
    svg,
    "text",
    x = x,
    y = y,
    fill = "black",
    `font-size` = fontsize,
    `font-family` = "Helvetica"
  )

  for (i in seq_along(lines)) {
    xml_add_child(
      text_node,
      "tspan",
      lines[[i]],
      x = x,
      dy = if (i == 1) "0" else as.character(fontsize * lineheight)
    )
  }

  invisible(svg)
}

Other results
